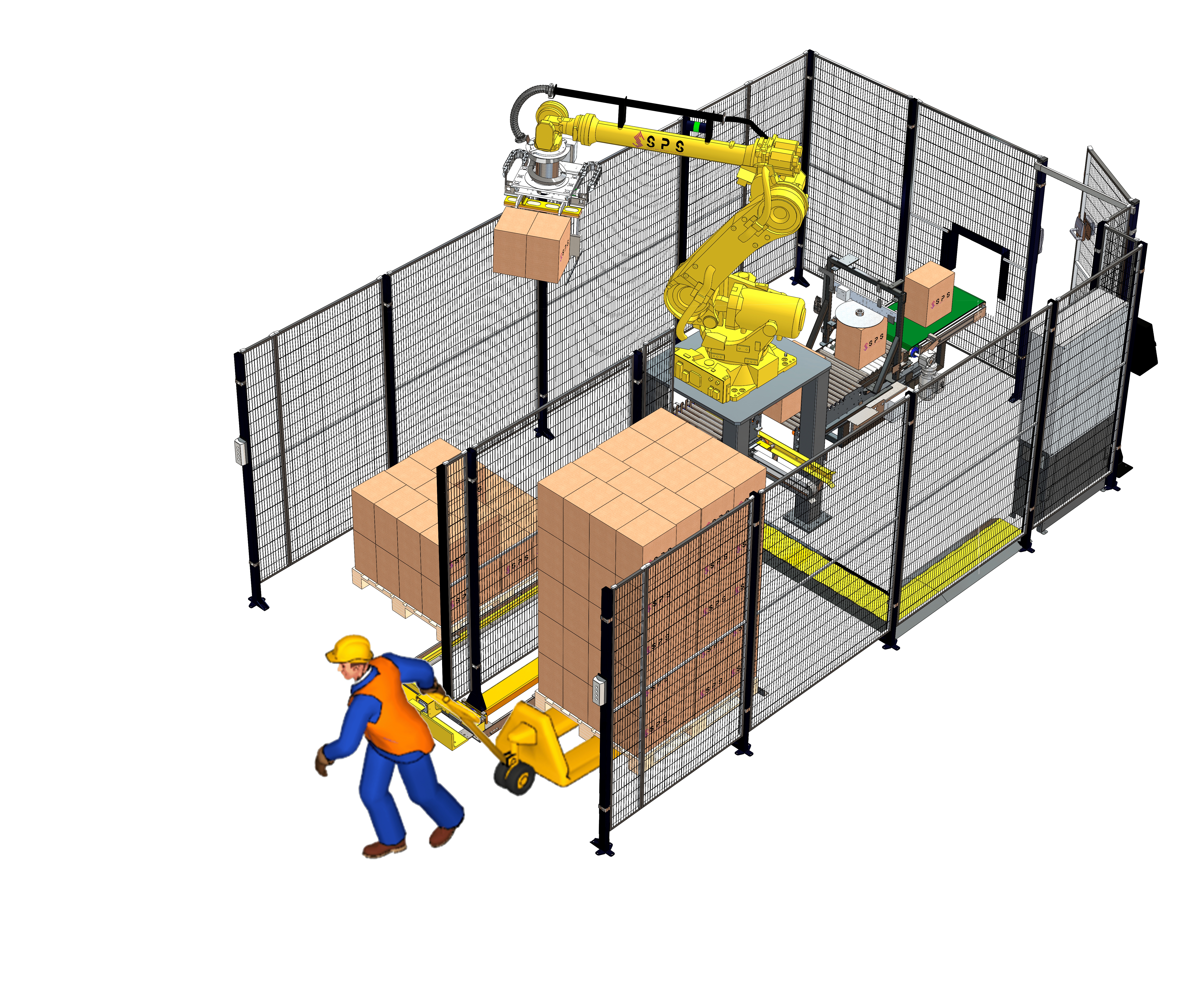

The new DUOBOT palletizing cell was developed to offer an industrial alternative to collaborative robots. The robot has two palletizing positions that work alternatively. This allows for the operator to access it in order to remove the entire pallet while the robot continues working on the other side.
Savvy Palletizing Solutions robots allow a palletizing speed from 8 to 35 cases/min. In addition, they exclusively use comb-type grippers, which provide a guaranteed 99% OEE. Thanks to their unique features, these grippers are the best choice for a palletizing robot.
Thanks to their built-in reference blade, our grippers ensure a perfect palletizing of each box.
Our palletizers don't require mechanical adjustments to change the format of the boxes, so they ensure maximum efficiency.
There is no chance of boxes breaking during palletizing. Even if the adhesive tape on the B1 cases is poorly applied, cases will not open by themselves during the palletizing process.
From 5x5x4 in to 24x16x16 in.
One of the biggest problems our customers face is the constant variation in case sizes and formats. With SPS palletizers, we solve this problem by being able to work with any type and size of box from 5x5x4 in to 24x16x16 in.
Our cells are mounted on a metal platform, which implies an 80% savings on time compared to a conventional robot.
Our palletizers incorporate an integrated pattern generator software. This easy and intuitive software allows you to create a new palletizing pattern in less than two minutes. You can save patterns and switch between them at any time.
Includes the slip sheet deposit and the vacuum device for the gripper.
Allows for remote access to the palletizing cell via a WIFI network.
Allows for the final orientation of the boxes to be modified in order to make the label visible or not.
